Cartridge
Cartridge 25mm
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
25˚ |
| Max. Turning Angle |
100˚ |
| Nut Torque |
8~9Nm |
| Water Resistance Pressure |
Max. 25bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
6.8~7.5 ℓ/min |
| Flow Rate (at 2bar) |
8.8~9.4 ℓ/min |
| Flow Rate (at 3bar) |
10.5~11.0 ℓ/min |
| Endurance Test |
500,000 cycle |

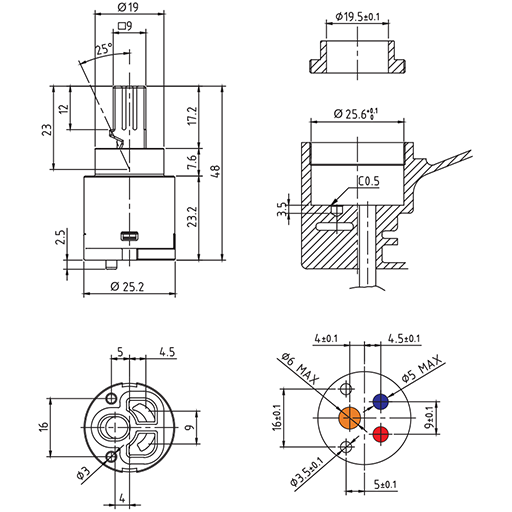

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
25˚ |
| Max. Turning Angle |
100˚ |
| Nut Torque |
8~9Nm |
| Water Resistance Pressure |
Max. 25bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
6.8~7.5 ℓ/min |
| Flow Rate (at 2bar) |
8.8~9.4 ℓ/min |
| Flow Rate (at 3bar) |
10.5~11.0 ℓ/min |
| Endurance Test |
500,000 cycle |

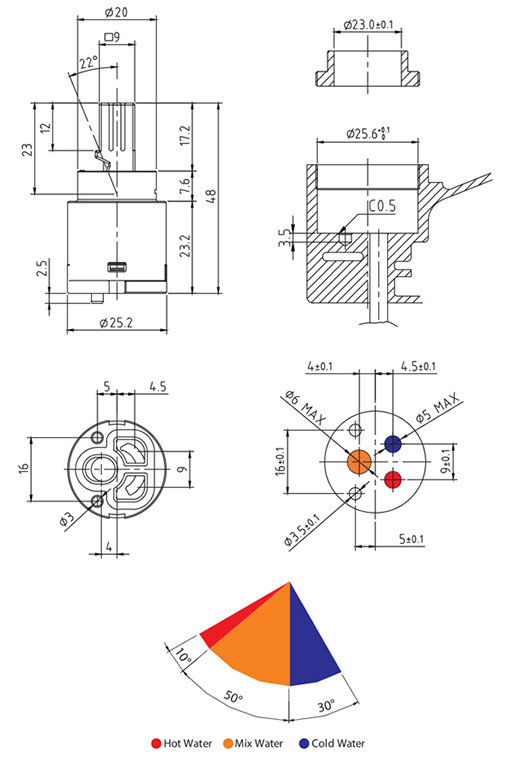

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
22˚ |
| Max. Turning Angle |
60˚/30˚ |
| Nut Torque |
8~9Nm |
| Water Resistance Pressure |
Max. 25bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
3.8~4.0 ℓ/min |
| Flow Rate (at 2bar) |
4.5~5.5 ℓ/min |
| Flow Rate (at 3bar) |
5.8~6.6 ℓ/min |
| Endurance Test |
500,000 cycle |

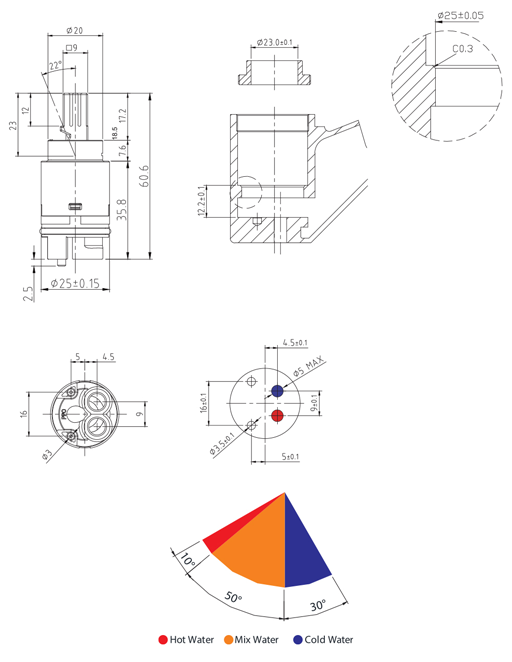

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
22˚ |
| Max. Turning Angle |
60˚/20˚ |
| Nut Torque |
8~9Nm |
| Water Resistance Pressure |
Max. 35bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
5.0~6.0 ℓ/min |
| Flow Rate (at 2bar) |
8.0~9.0 ℓ/min |
| Flow Rate (at 3bar) |
10.0~11.0 ℓ/min |
| Endurance Test |
500,000 cycle |
Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
22˚ |
| Max. Turning Angle |
60˚/30˚ |
| Nut Torque |
8~9Nm |
| Water Resistance Pressure |
Max. 25bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
3.8~4.0 ℓ/min |
| Flow Rate (at 2bar) |
4.5~5.5 ℓ/min |
| Flow Rate (at 3bar) |
5.8~6.6 ℓ/min |
| Endurance Test |
500,000 cycle |
Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
25˚ |
| Max. Turning Angle |
100˚ |
| Nut Torque |
8~9Nm |
| Water Resistance Pressure |
Max. 25bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
9 ℓ/min |
| Flow Rate (at 2bar) |
13 ℓ/min |
| Flow Rate (at 3bar) |
16 ℓ/min |
| Endurance Test |
500,000 cycle |

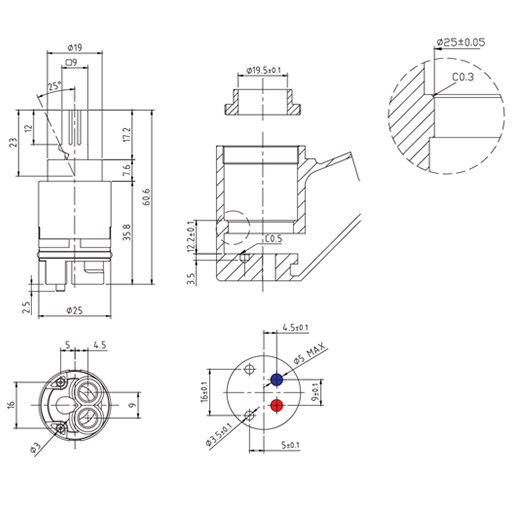

Dimensions (in mm)
