> Products > Cartridge
Cartridge
Diverter 35mm
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Turning Angle |
100˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 35bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
19~21 ℓ/min |
| Flow Rate (at 2bar) |
24~26 ℓ/min |
| Flow Rate (at 3bar) |
30~32 ℓ/min |
| Endurance Test |
500,000 cycle |

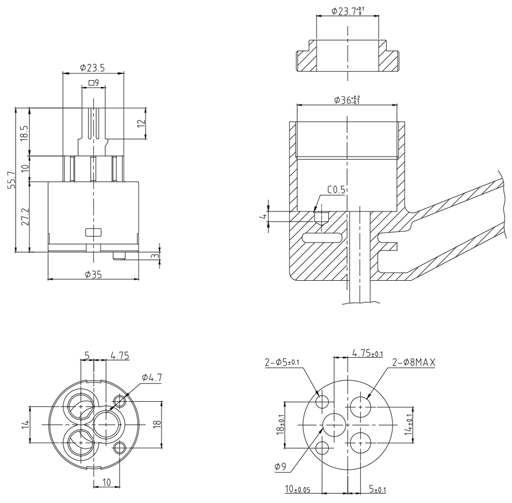

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Turning Angle |
100˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 35bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
12~13 ℓ/min |
| Flow Rate (at 2bar) |
17~19 ℓ/min |
| Flow Rate (at 3bar) |
20~28 ℓ/min |
| Endurance Test |
500,000 cycle |

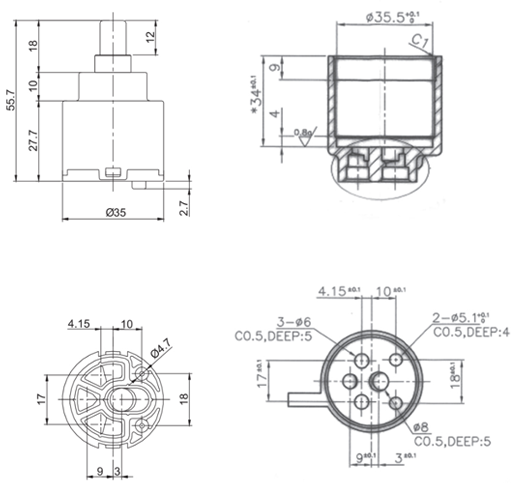

Dimensions (in mm)
