> Products > Cartridge
Cartridge
Diverter 25mm
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
180˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 35bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
12~14 ℓ/min |
| Flow Rate (at 2bar) |
18~21 ℓ/min |
| Flow Rate (at 3bar) |
23~25 ℓ/min |
| Endurance Test |
500,000 cycle |

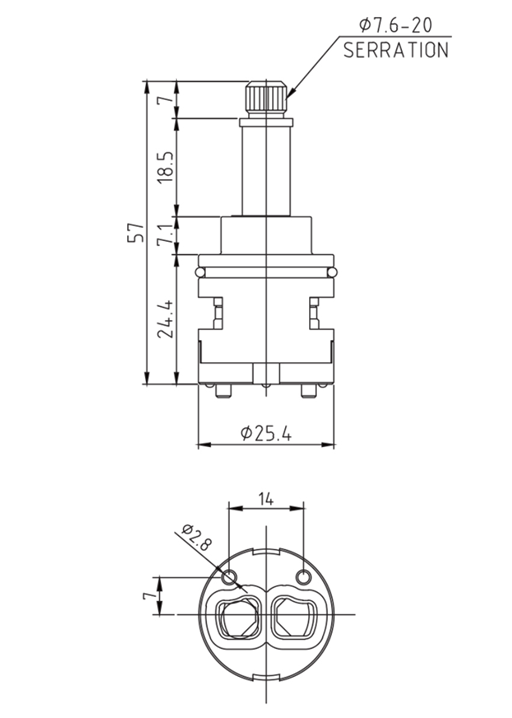

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
180˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 25bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
12~14 ℓ/min |
| Flow Rate (at 2bar) |
18~21 ℓ/min |
| Flow Rate (at 3bar) |
23~25 ℓ/min |
| Endurance Test |
500,000 cycle |

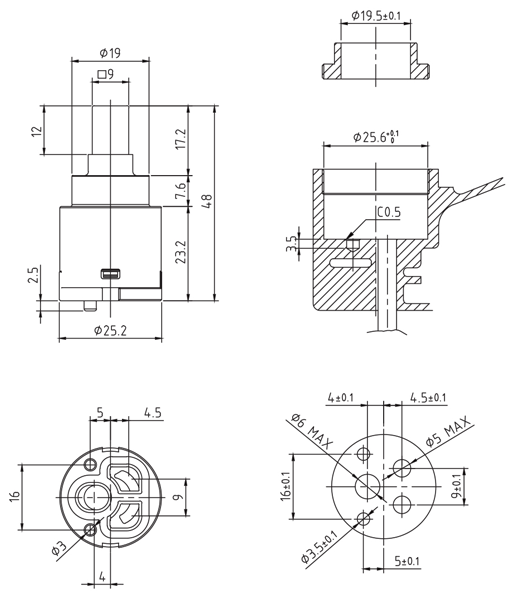

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
100˚ |
| Nut Torque |
8~9Nm |
| Water Resistance Pressure |
Max. 25bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
6.8~7.5 ℓ/min |
| Flow Rate (at 2bar) |
8.8~9.4 ℓ/min |
| Flow Rate (at 3bar) |
10.5~11.0 ℓ/min |
| Endurance Test |
500,000 cycle |

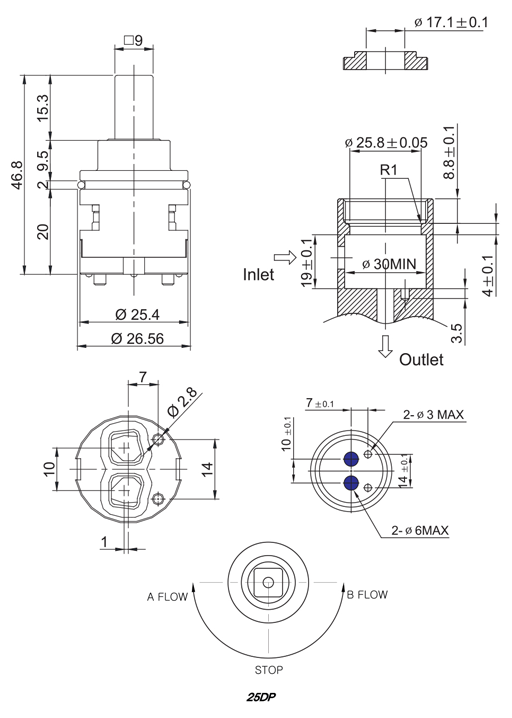

Dimensions (in mm)
