Cartridge 38mm

• 38AF
• 38AF-CO
• 38AF-H
• 38AF-3S
• 38EF
• 38EF-CO
• 38EF,A
• 38EF,A-CO

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

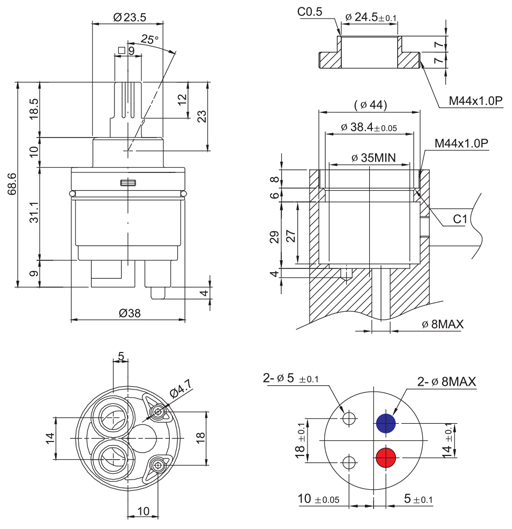

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

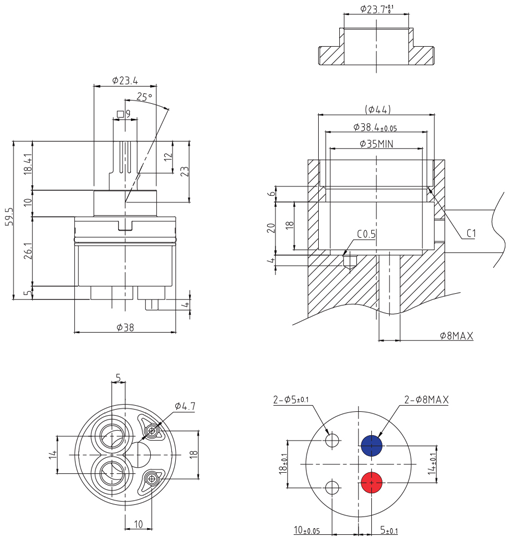

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	23˚
Max. Turning Angle	90˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Flow Rate (at 1bar)	8.0~9.0 ℓ/min
Flow Rate (at 2bar)	13.0~14.0 ℓ/min
Flow Rate (at 3bar)	17.0~18.0 ℓ/min
Endurance Test	500,000 cycle

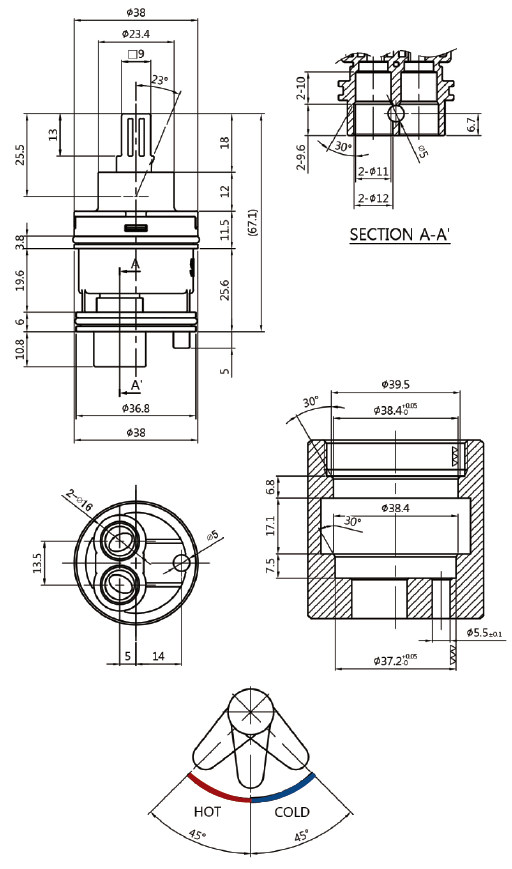

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

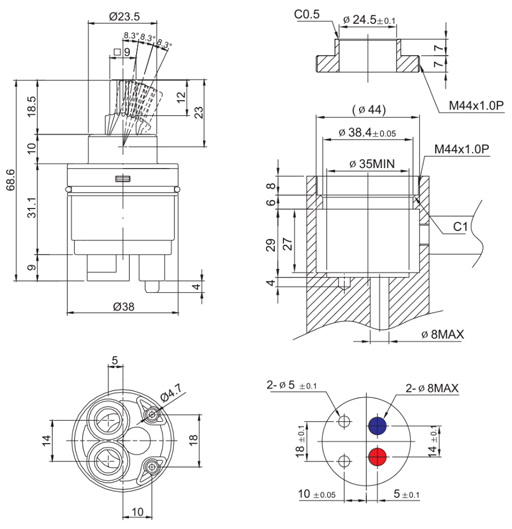

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	60˚/30˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	7.5~8.5 ℓ/min
Flow Rate (at 2bar)	10.5~12 ℓ/min
Flow Rate (at 3bar)	13.5~15 ℓ/min
Endurance Test	500,000 cycle

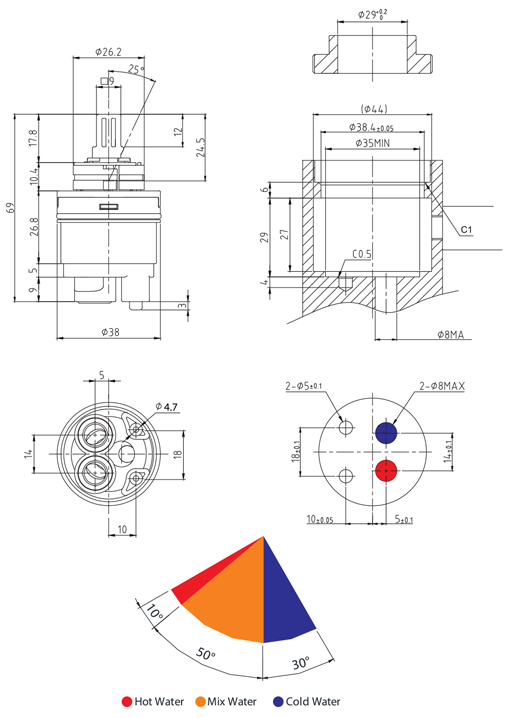

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	60˚/30˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	7.5~8.5 ℓ/min
Flow Rate (at 2bar)	10.5~12 ℓ/min
Flow Rate (at 3bar)	13.5~15 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	60˚/30˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	7.5~8.5 ℓ/min
Flow Rate (at 2bar)	10.5~12 ℓ/min
Flow Rate (at 3bar)	13.5~15 ℓ/min
Endurance Test	500,000 cycle

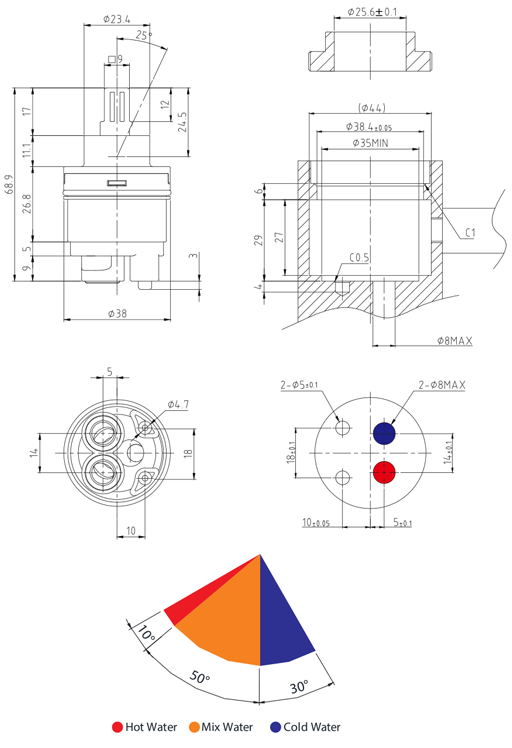

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	60˚/30˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	7.5~8.5 ℓ/min
Flow Rate (at 2bar)	10.5~12 ℓ/min
Flow Rate (at 3bar)	13.5~15 ℓ/min
Endurance Test	500,000 cycle

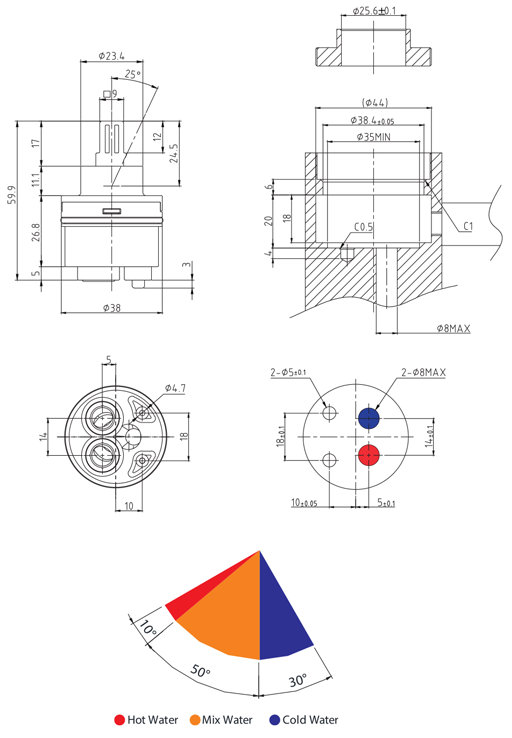

Dimensions (in mm)
