PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Turning Angle	360˚
Nut Torque	8~10Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	10~11 ℓ/min
Flow Rate (at 2bar)	15~17 ℓ/min
Flow Rate (at 3bar)	18~20 ℓ/min
Endurance Test	500,000 cycle

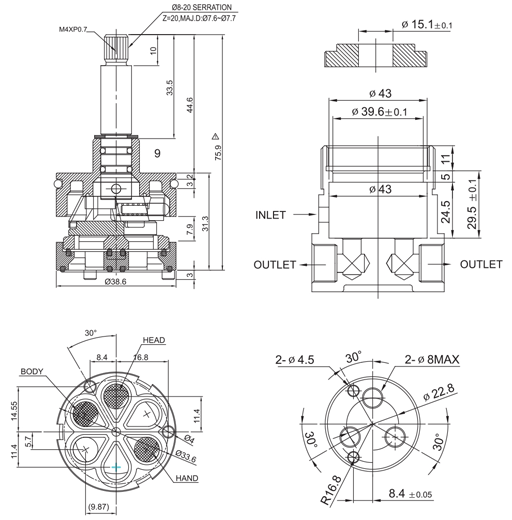

Dimensions (in mm)
